Chain inspection

< Back

The system checks the completeness of industrial and automobile chains, which are produced continuously. During the control process the existence of all sideplates and rolls are checked.

The system checks the completeness of industrial and automobile chains, which are produced continuously.
During the control process the existence of all sideplates and rolls are checked.

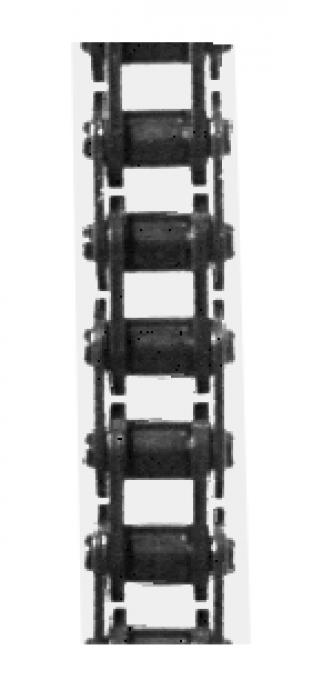

The chain passes an LED area-flash light source and is tested by the vision system with a speed up to 150 mm / sec. An assembly control of cyclically recurring special chain parts is also possible.
Up to 6 tests can be performed per second.

Technical data:

Greyscale - vision system with 256 grey levels
Area-flash light source with adjustable flash periods
Pattern matching with subpixel resolution and vectorized grey-level correlation
Triggering and synrchonization with mechanically coupled sensor
PLC-interface for machine control and switching of test programs
Simple setting of parameters using a trackball
User guidance during programming
Any number of measuring programs possible
Visual output of detected errors on screen
Compact ZU-Vision folding case for switch cabinet integration
