End-of-line testing and measurement of stamped contacts



  < Back

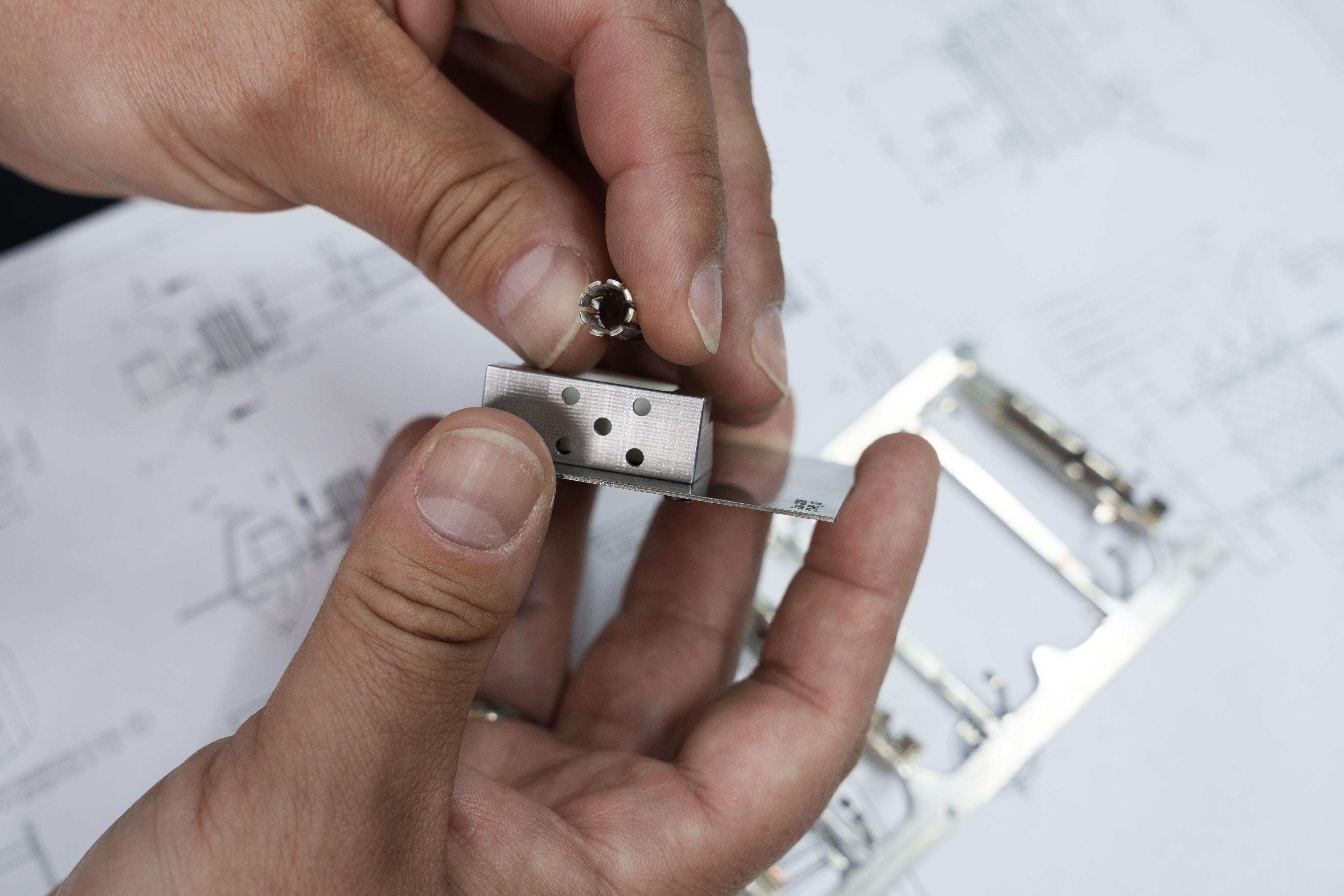

eMobility high-voltage connector for charging plugs with protection class IP67

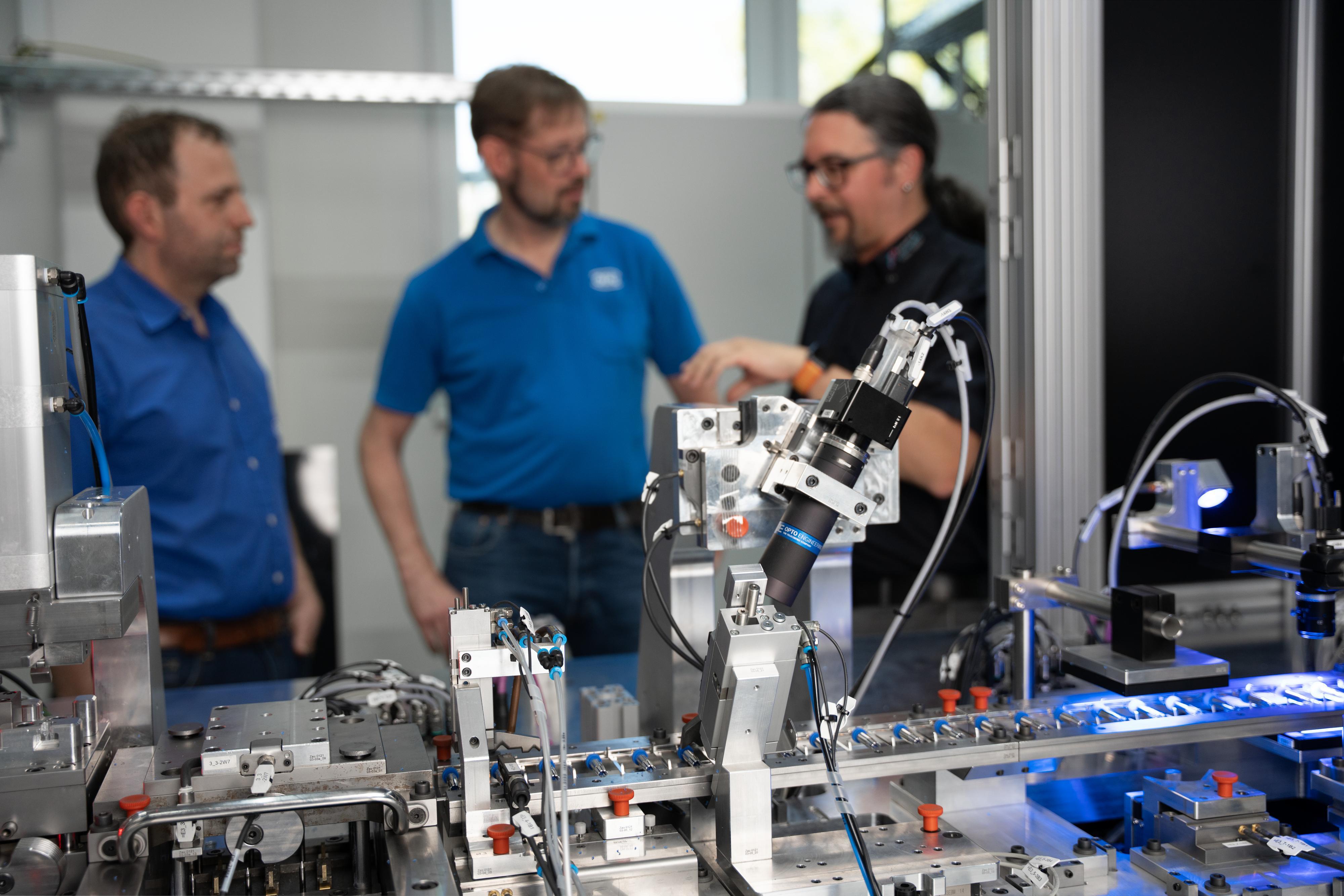

Inline vision system integrated into customer's own production automation

Inspection caracteristics:

  • presence of sealing lips
  • Short shots

Measurement caracteristics:

  • Aperture size, Roundness
  • Diameter
  • Contact distance

Technical data:

  • Inline System with ZU-Vision Software

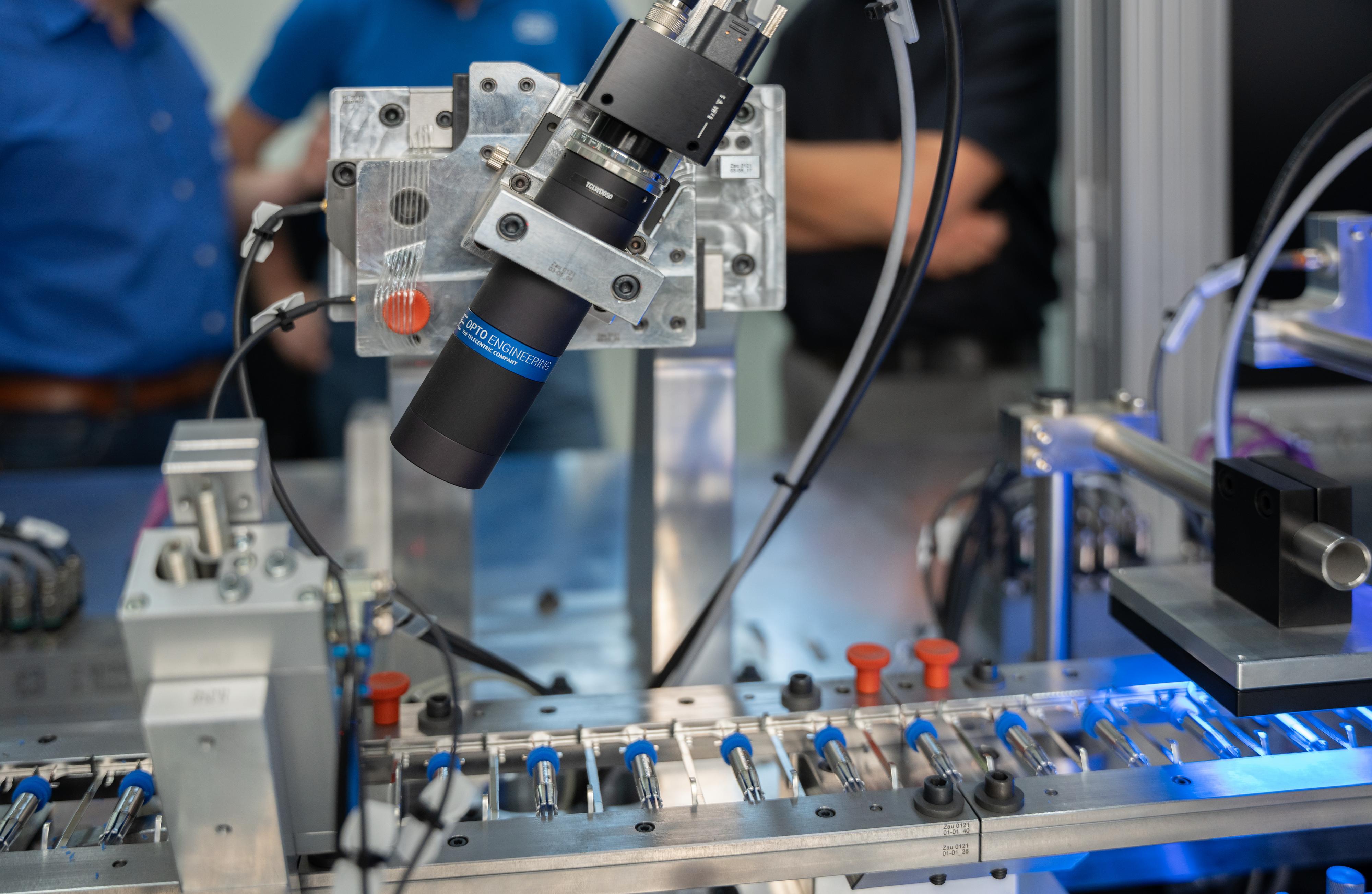

  • 5 camera stations
  • ProfiNET Interface to PLC system

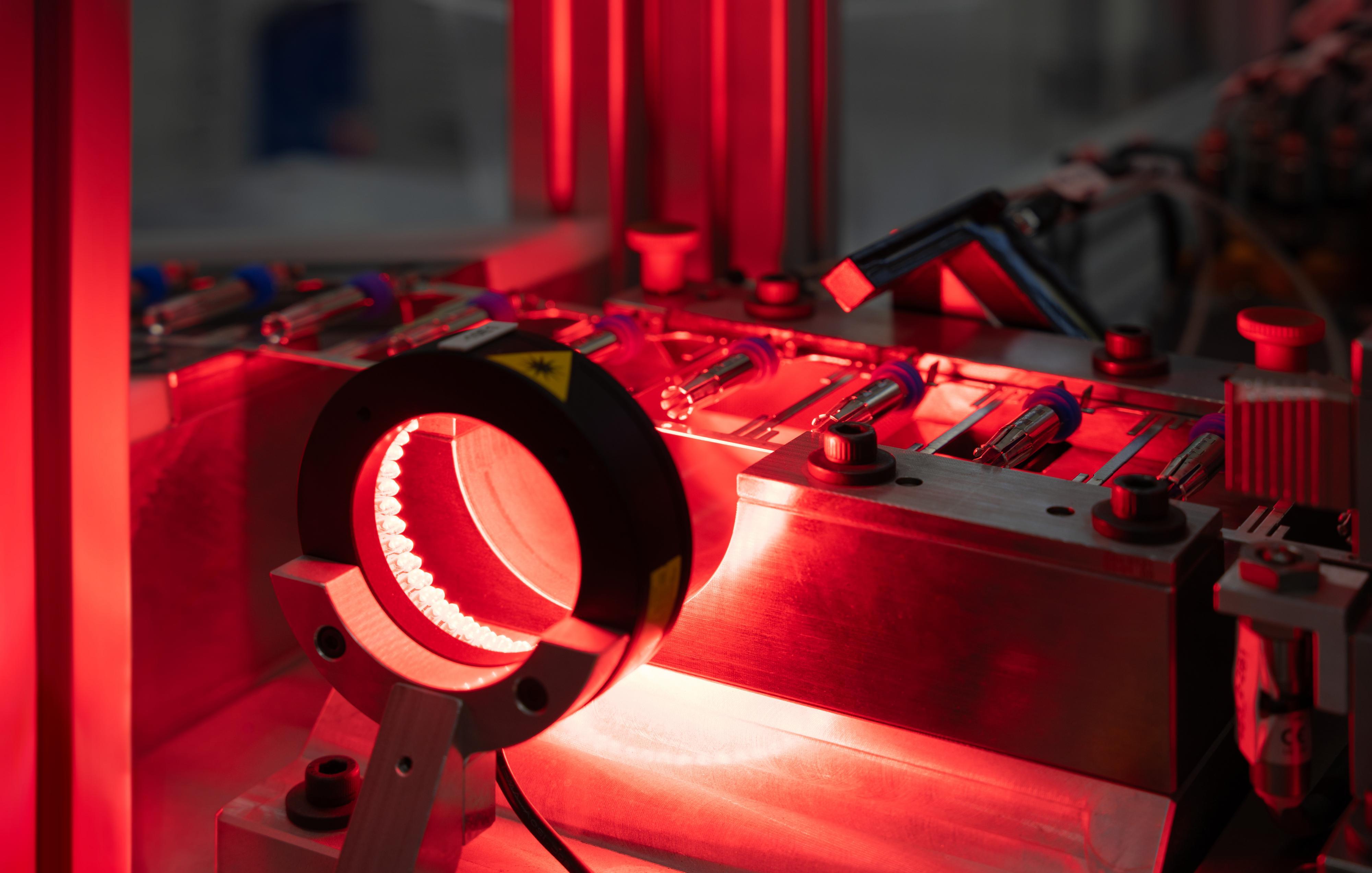

  • Application specific lights (ambient/ backlight) with strobe controller

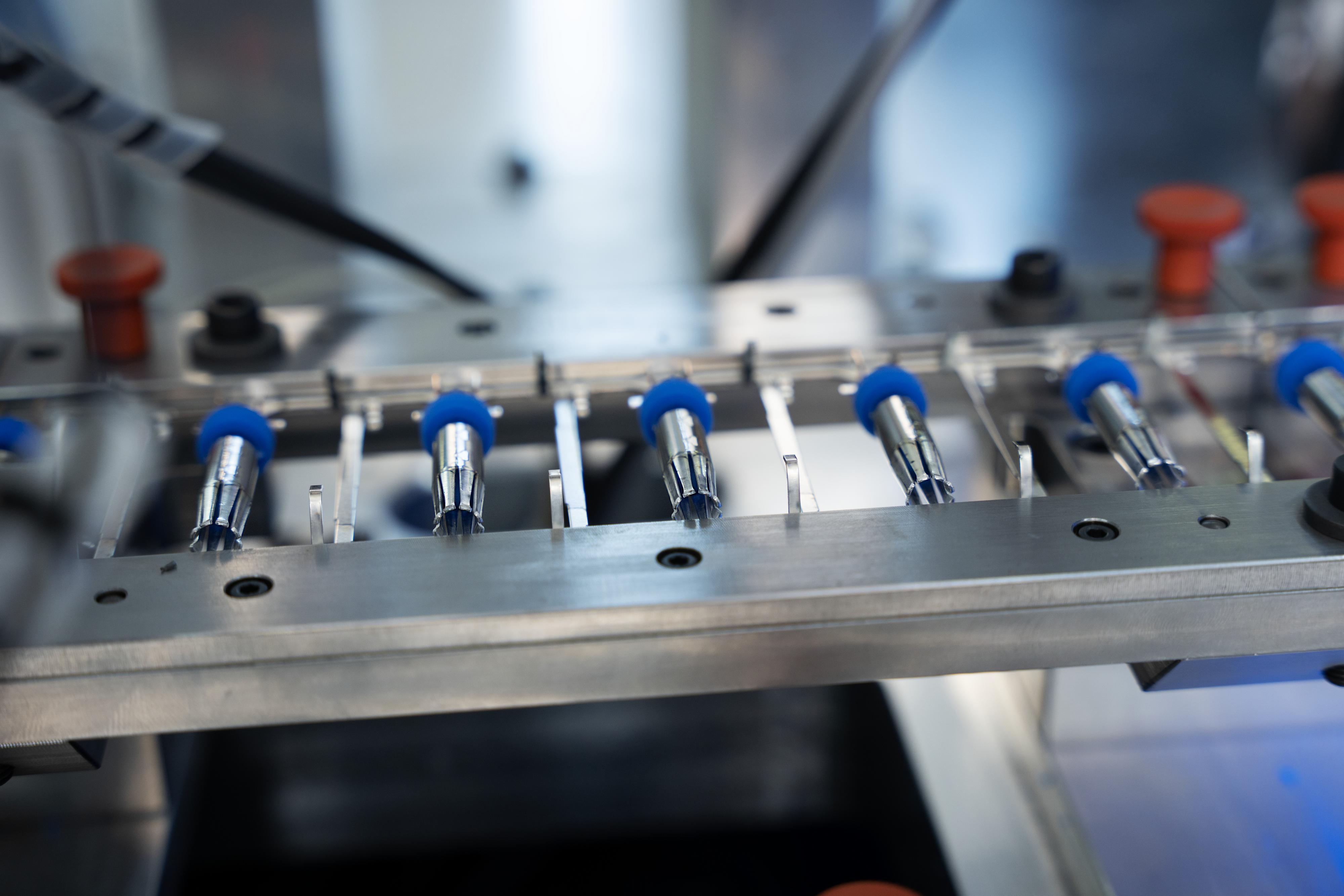

  • Inspection in clocked stamping belt (1 part/s)
  • MSA for measured dimensions (Tolerance ±0,07mm)
  • Link to preliminary self-sufficient raw part inspection prior to overmolding process
