Inmold label inspection of plastic lids

< Back

The system inspects the correct type and the correct position of in-mold labels in plastic covers on two conveyor belts with two parallel working Cameras.

This Windows XP based system inspects the correct type and the correct position of in-mold labels in plastic covers on two conveyor belts with two parallel working Cameras.

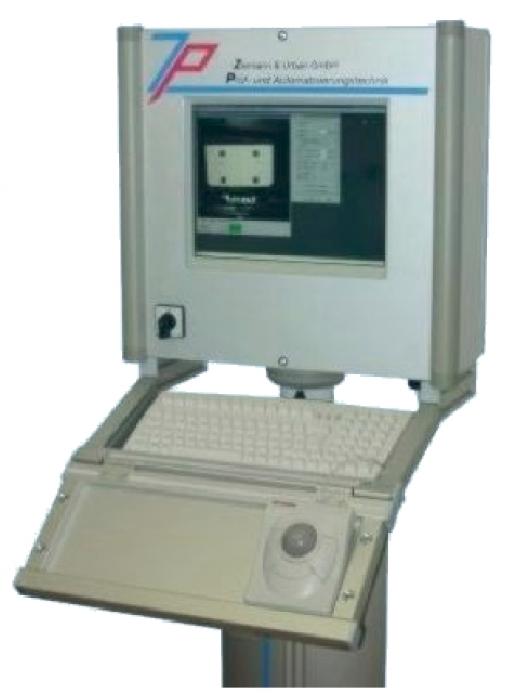

The components including the image processing system with 17 "TFT screen and CD burner for backups are integrated in an IP54 housing.
Via LAN or modem remote maintenance of the system can be perfomed using VNC or TeamViewer software where necessary.

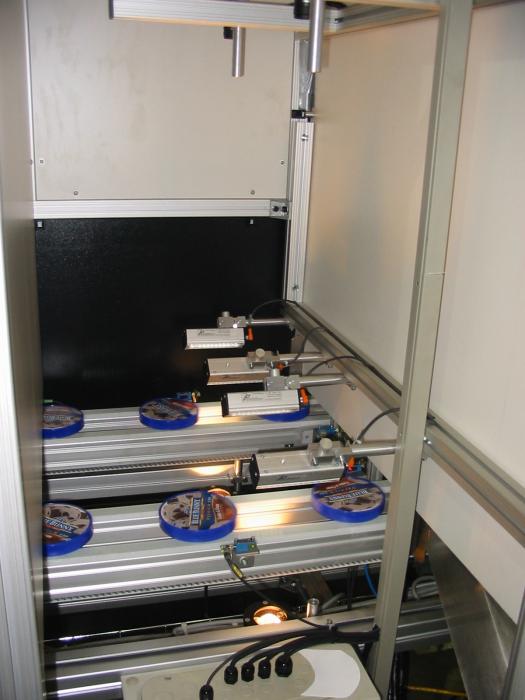

The brightness-adjustable lighting consists of two white LED and two halogen lamps.

The system is capable to process a large variety of products in less than 250ms per two test parts.
During the whole inspection the user is allowed to do programming and adjusting without interrupting the production.

Technical data:

Image processing system computer with P4 CPU ( 3 GHz ) and Windows XP Professional
two IEEE 1394 cameras (400 Mbits / s) with 1.4 megapixel
field of view 150 x 210 mm
max. Transport speed of 1 m/s (max. 2 m/s with flash light)
Measurement resolution 30 µm
Measuring accuracy at 0.1 to 0.2 mm
360 ° rotation detection +/- 1 ° accuracy
250 ms Processing time for 2 cameras at +/- 180 ° rotation of the labels
Vision tool library for additional measurements (freely configurable)
easy programming of limits and tolerances
detailed statistics display with export function in an EXCEL -compatible document
automated image storage for OK / NOK parts
4 channel , programmable lighting controller for LED or halogen lamps
potential free bit I/O PLC interface (16 In / 16 Out)
High -speed trigger module for the cameras (Trigger Accuracy < 500 µs)
asynchronous triggering and evaluation of both cameras possible
Remote Service & Trouble-Shooting via LAN / VPN
