Stamping tape inspoection as stand-alone system

< Back

Self-sufficient system with drive/removal of the punching strip from the coil.
Constant throughput measurement with one component per second in an otherwise clocked punching strip via loop formation with internal control.
Measurement of the pre-bent contact before overmolding with silicone.
Test characteristics
- opening aperture
- roundness
- diameter
- contact distance

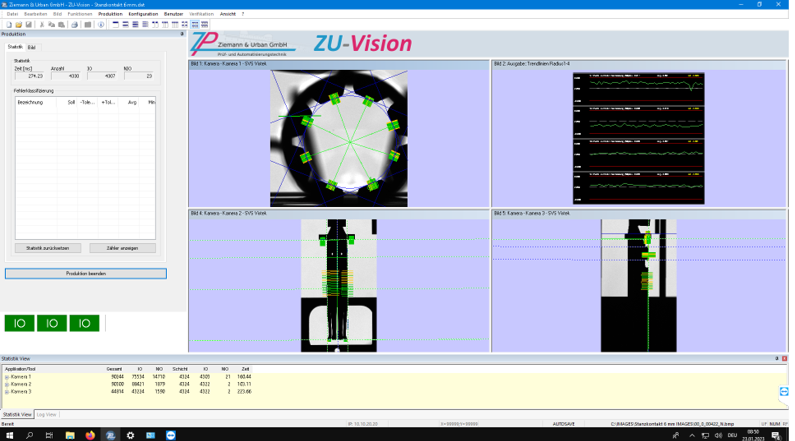

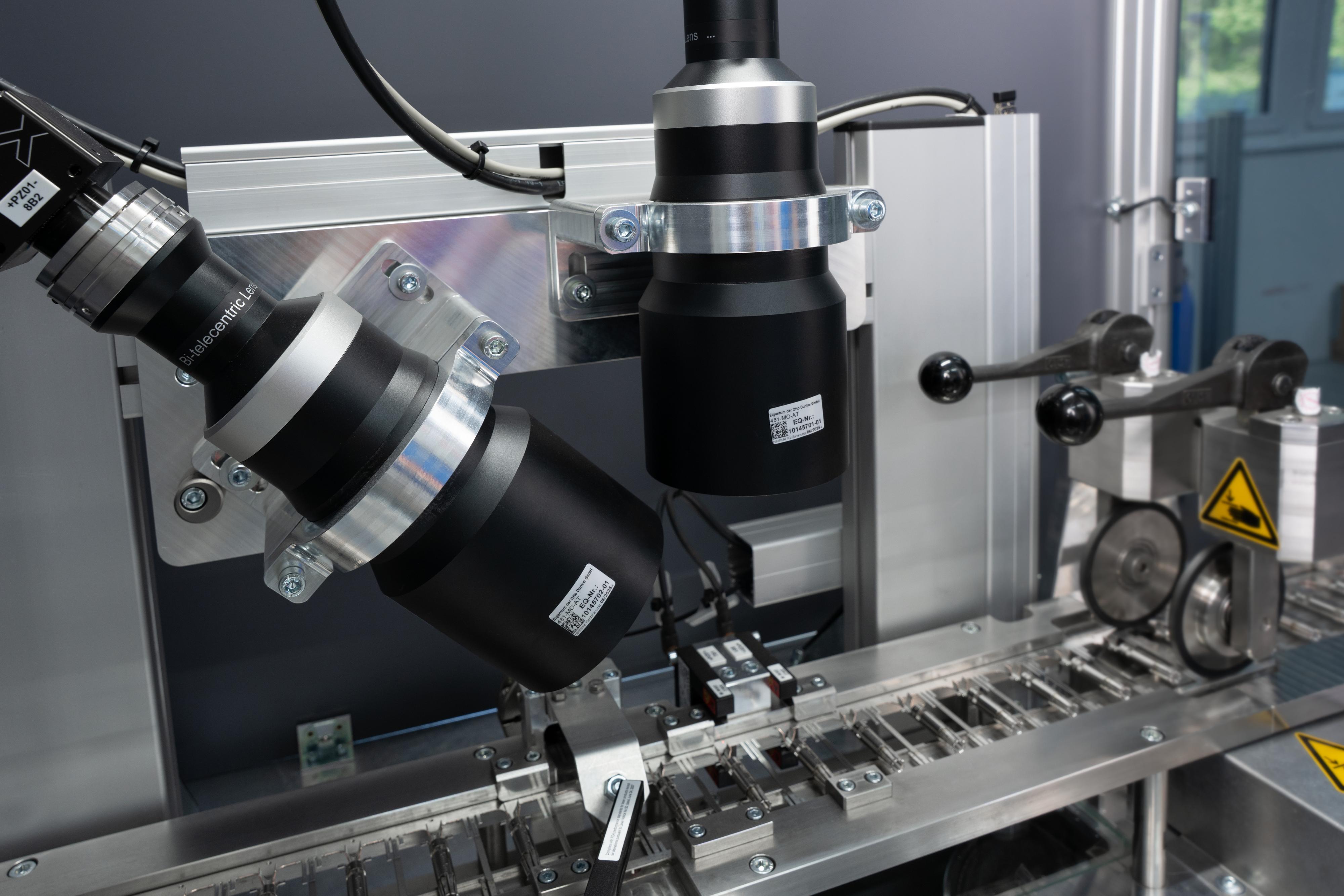

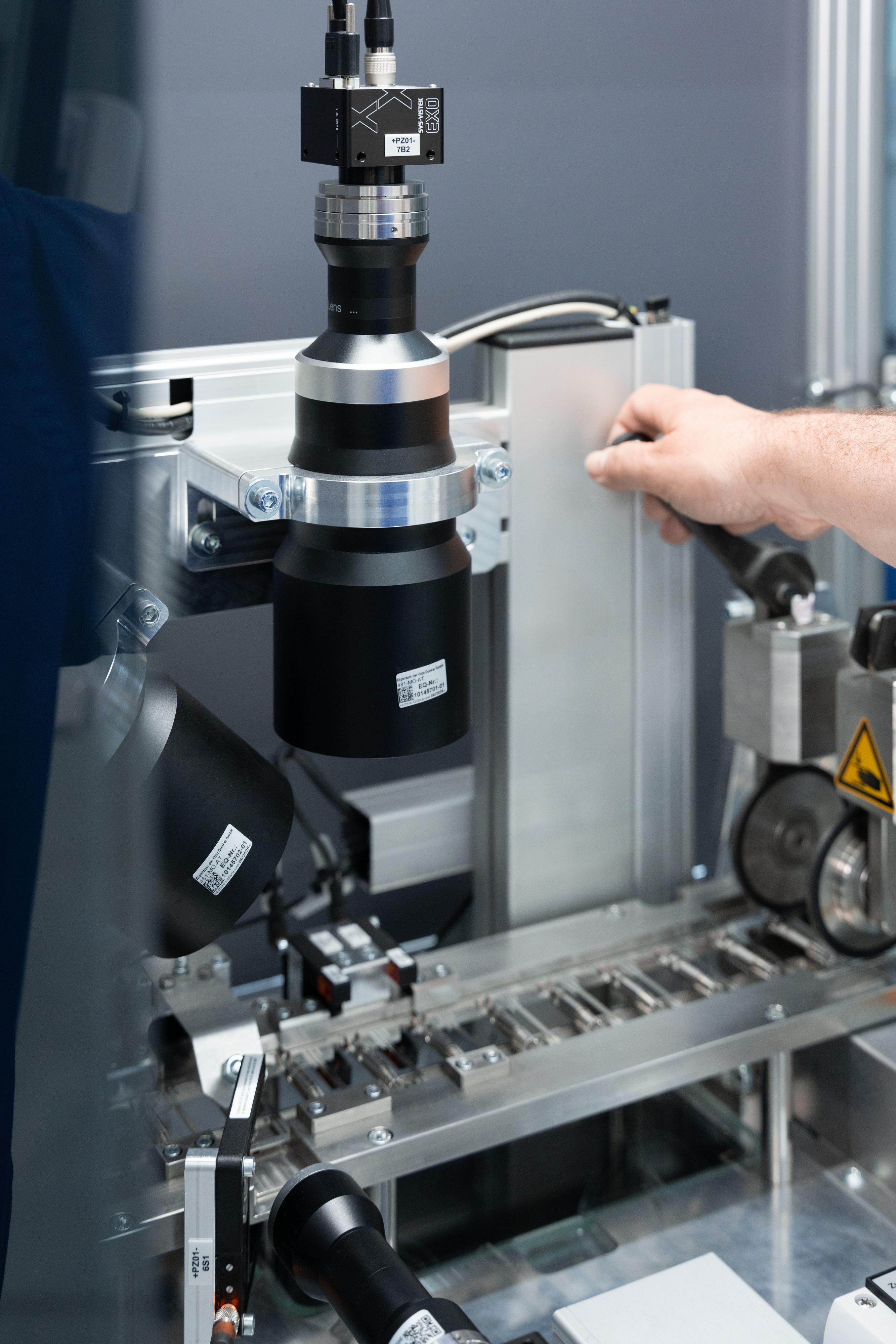

Image acquisition with three telecentric cameras.
Measurement capability verification for geometric measurement with minimum tolerance of +- 0.07 mm.
Communication with higher-level line control via ProfiNET interface.
Link to EOL measurement of finished parts (100% inline testing) in separate system.
